System with loose plates

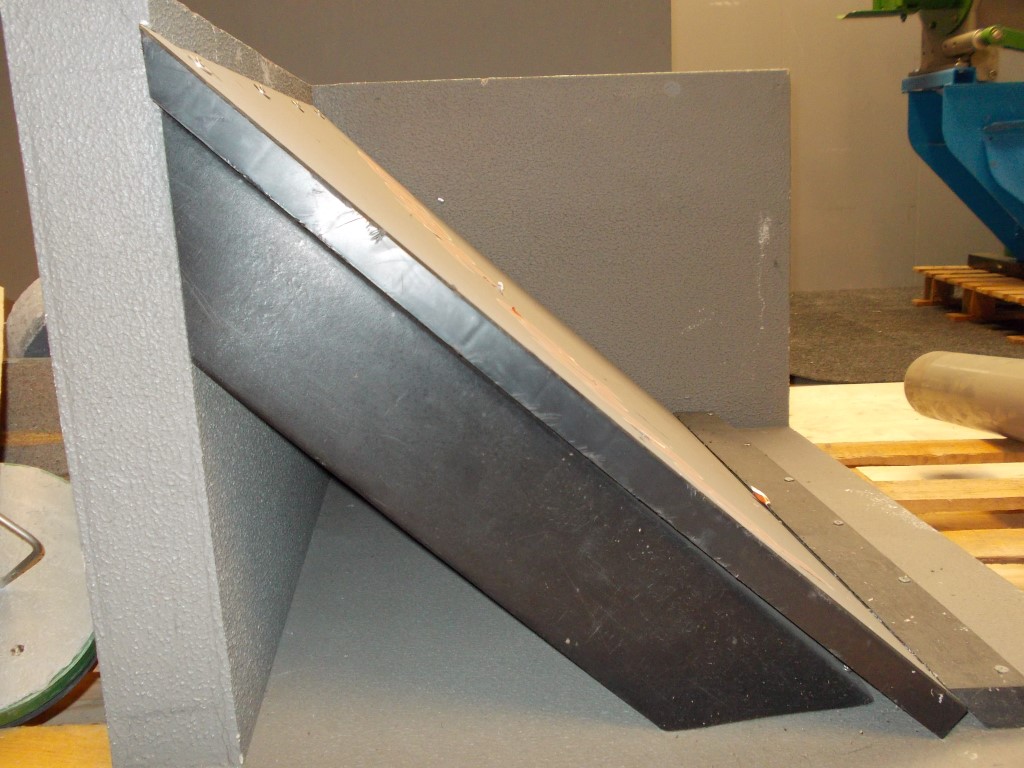

For this system, plates are used which have a strengthening structure at the back side. The plates are made of 100% PP or PE and can be recycled, since they don’t contain cadmium. The plates can be welded and will be cut on one side under an angle of 45°.

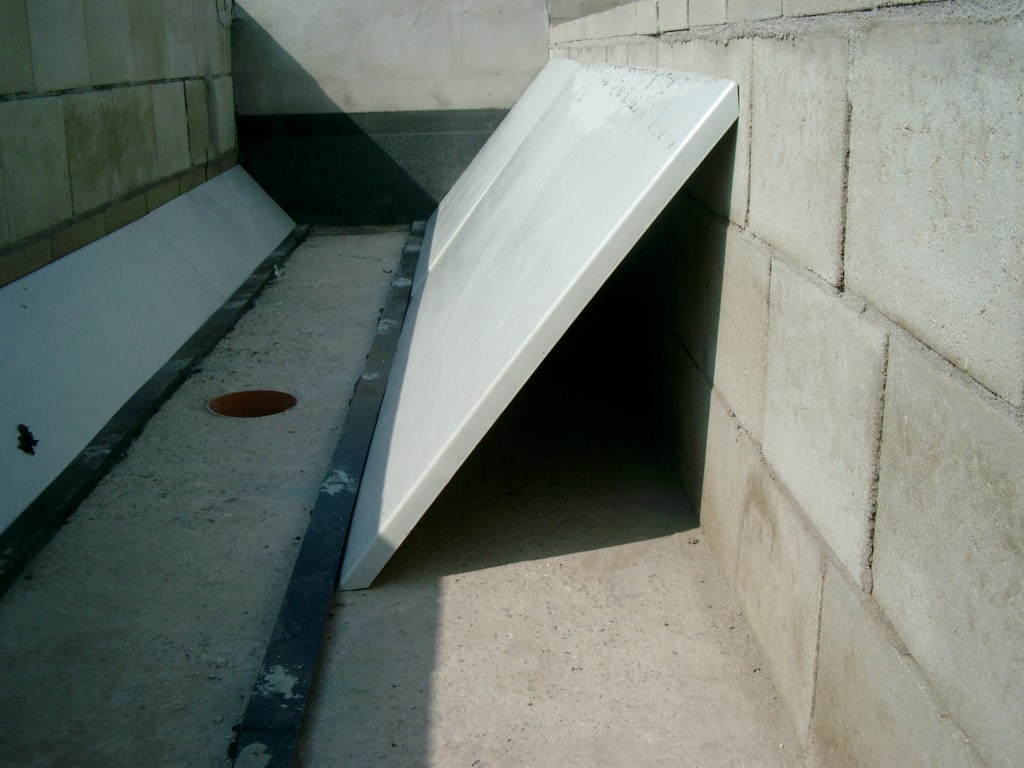

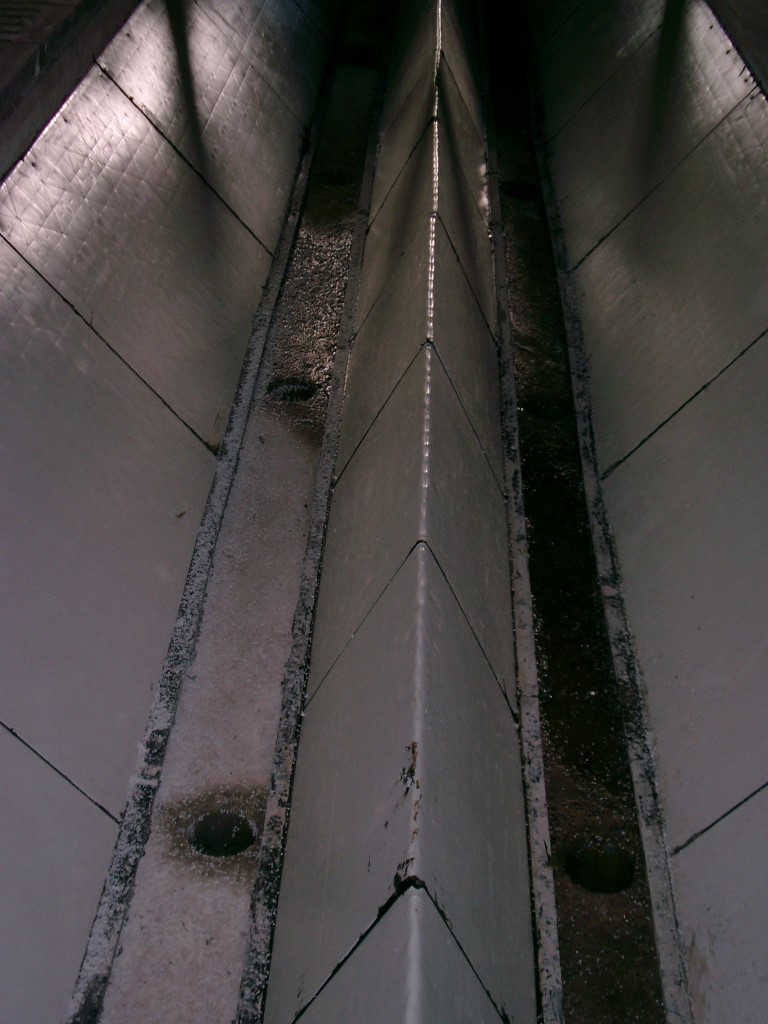

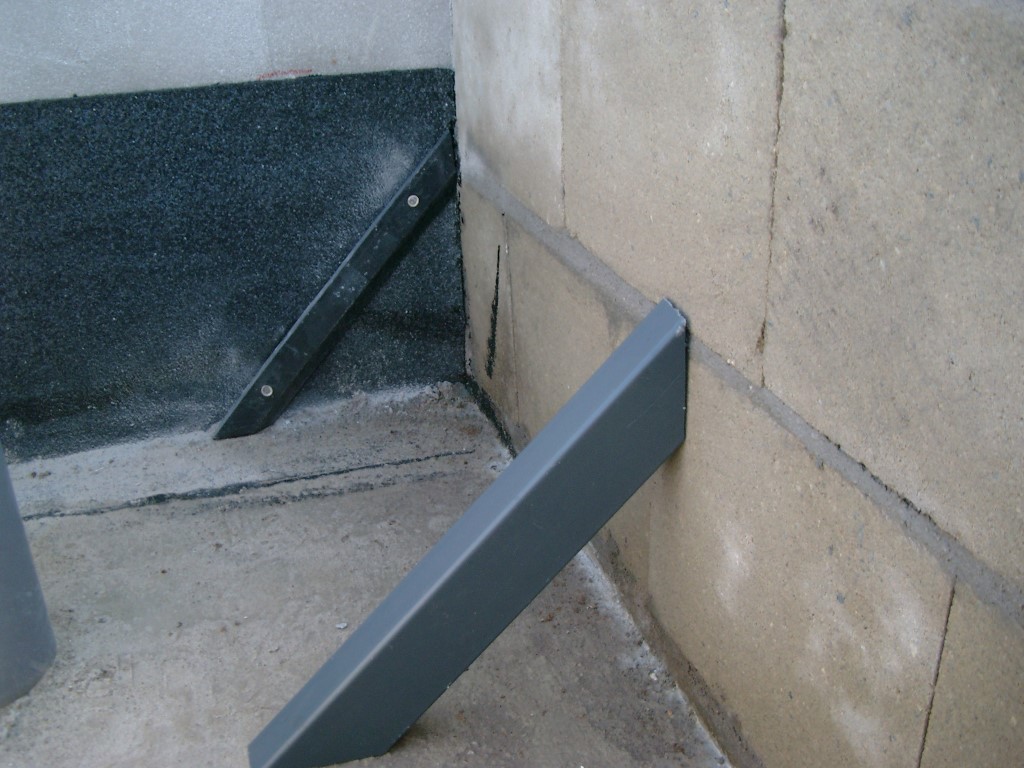

The plates can be installed on the pit floor, but also on a wall. The first drawing shows how they need to be installed on the pit floor and the second drawing shows the installation on a wall. Material to fasten and support the plates is standard delivered with the plates.
